Detailinformationen

Produktname:	Wechselstrom-Magnetschütz	Anwendung:	Wechselstrommotor
Typ:	Schütz	Spulenspannung:	220V- 690V
Hauptkreislaufstrom:	25A	Zustand:	100 % neu
Hervorheben:	220V 3 poles AC contactor , Gmc electric magnetic contactor 85A , 380V AC contactor with warranty

Produkt-Beschreibung

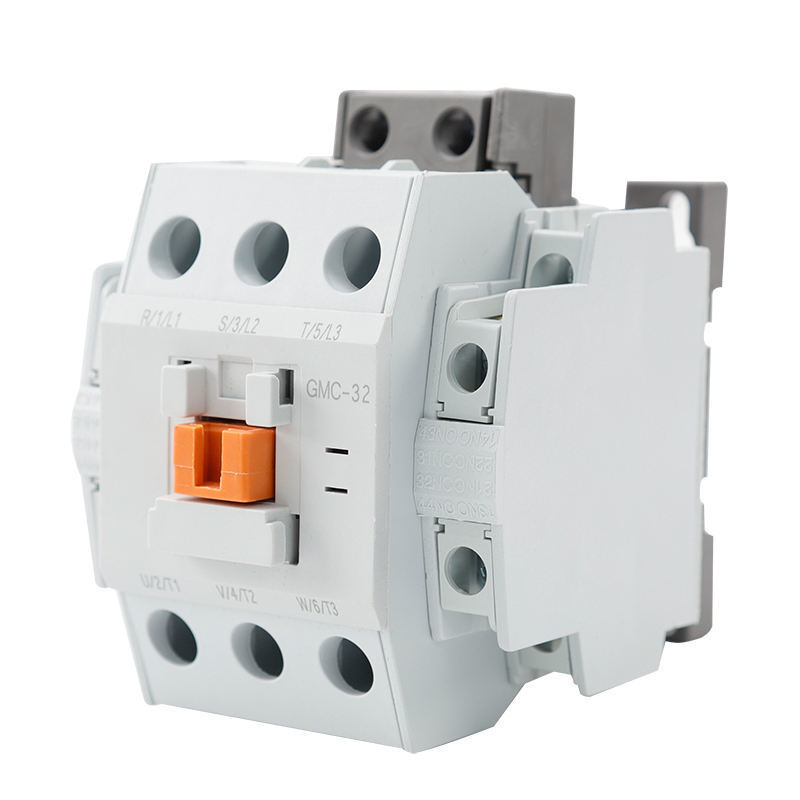

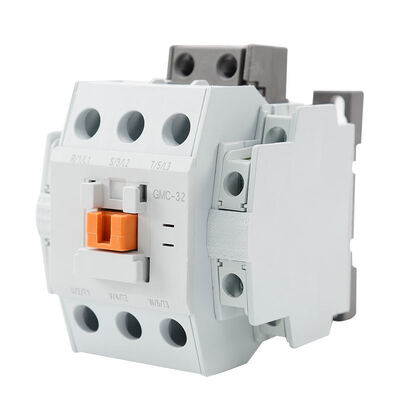

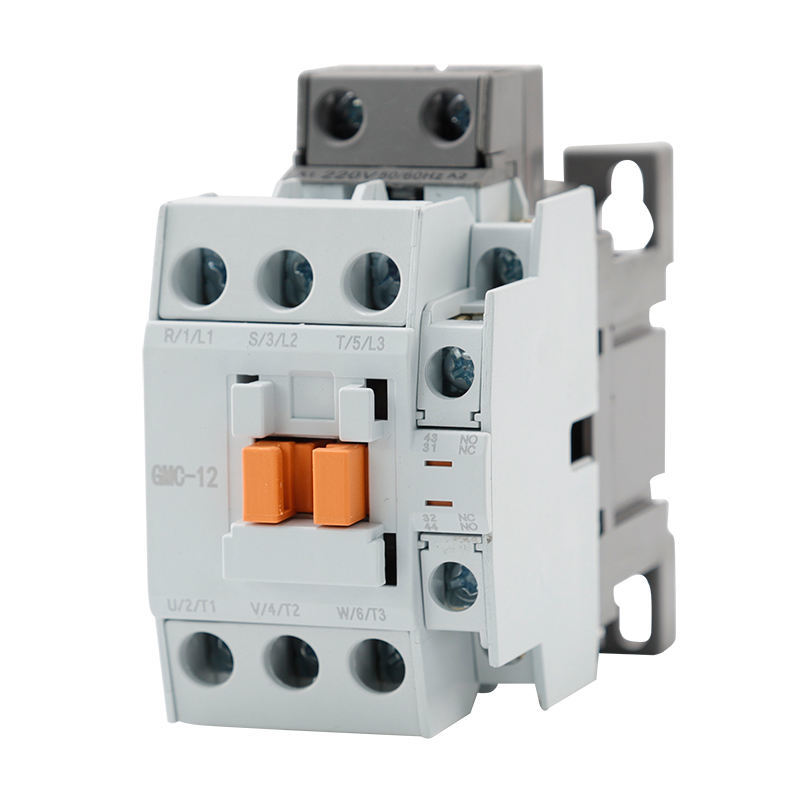

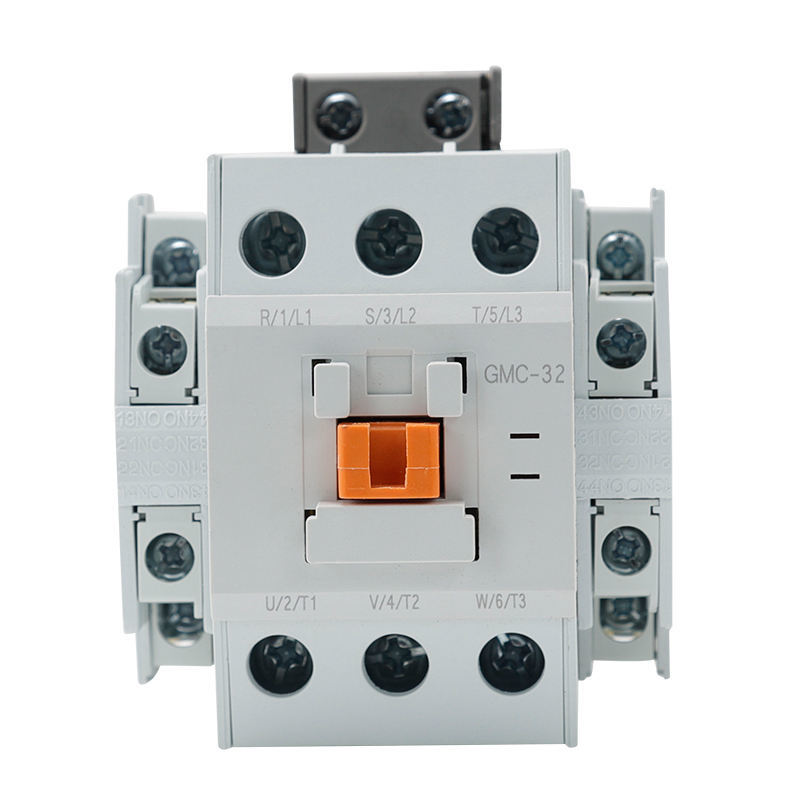

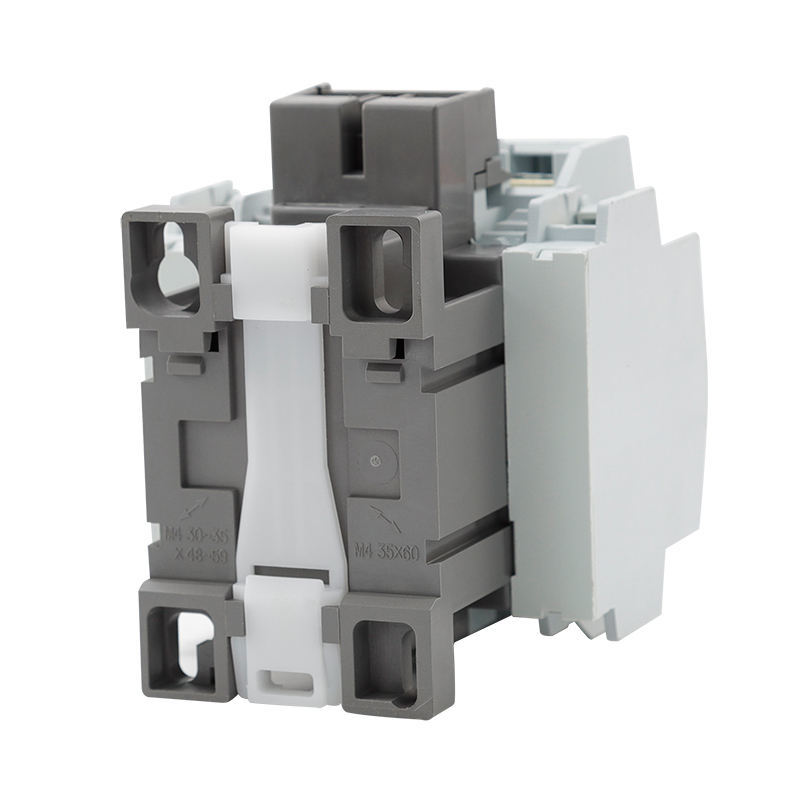

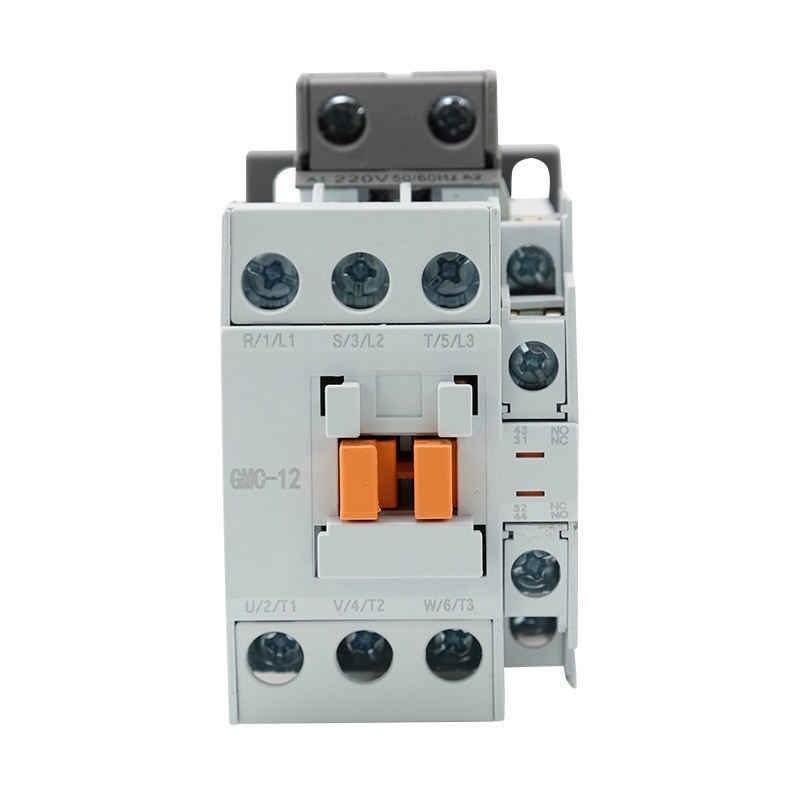

GMC Electric Magnetic AC Contactor

220V 3 Poles 09 to 85 Ampere, compatible with 380V, 48V, and 110V systems

Product Features

Three pairs of main contacts for reliable power distribution
Electric shock prevention safety cover design
Flexible installation options: guide rail or screw mounting
Direct compatibility with thermal overload relays
Dual rated current level framework
Accessory installation capability on top or side
Standard configuration includes 1NO+1NC auxiliary contact

Technical Specifications

Type	GMC-9	GMC-12	GMC-18	GMC-22
Rated heating current (A)	25	25	40	40
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	1NC+1NO
Short-time withstand current (A) 10S	72	96	144	196
IEC-60947 AC3 Load Power
200-240V	2.5KW	3.5KW	4.5KW	5.5KW
380-440V	4KW	5.5KW	7.5KW	11KW
500-550V	4KW	7.5KW	7.5KW	15KW
690V	4KW	7.5KW	7.5KW	15KW
UL508 Specifications
Continuous current	20A	25A	30A	32A
Operation frequency (times/h)	Electrical: 1200, Mechanical: 3600
AC-3 Electrical life (10000/times)	100	100	100	100
Mechanical life (10000/times)	1000	1000	1000	1000

Installation Dimensions

Certifications

Why Choose Our Contactors

24-hour response to all inquiries
Technical and professional guidance support
Competitive pricing with superior quality
Dedicated to 100% customer satisfaction

Frequently Asked Questions

Could I have prices of your products?

Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours. Or you can contact us by Whatsapp if there us any urgent matter.

Can we print our logo/website/company name on products?

Yes, OEM and ODM are available.

What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.

Do you inspect the finished products?

Our products 100% self-inspection and testing before packing.

How about payment terms?

Standard order could pay by T/T, L/C. Small order could support Western Union.

Größe und Tag:

Herkunftsort:	China
Markenname:	YOKG
Zertifizierung:	CE,TUV,CB
Modellnummer:	GC-9~22

Min Bestellmenge:	100 Stück
Preis:	negotiable
Verpackung Informationen:	Jede Einheit wird in einem einzelnen Innenkarton verpackt
Lieferzeit:	15 Tage oder Hängt von der Bestellung von QTYS ab
Zahlungsbedingungen:	L/C, D/P, T/T
Versorgungsmaterial-Fähigkeit:	100000 Stück pro Monat
